109S078UL Sanyo Denki AC fan motor - 商品詳細情報

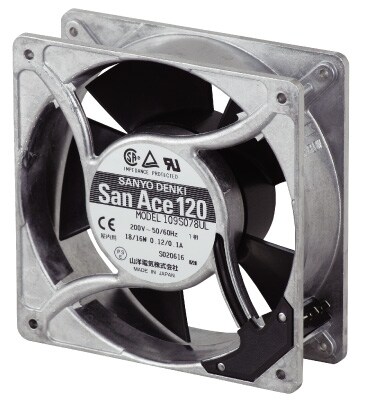

109S078UL

Sanyo Denki

AC fan motor

Search Alternative Products

Show Similar

109S078UL

Product Overview

AC Fan Axial Ball Bearing 200V 88.3CFM/102.5CFM 42dB/45dB 119 X 119 X 38mm

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8414596590

Search Alternative Products

Show Similar

Product Overview

AC Fan Axial Ball Bearing 200V 88.3CFM/102.5CFM 42dB/45dB 119 X 119 X 38mm

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8414596590

Product Information

3D CAD情報
- SamacSys
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_Sanyo Denki_Datasheet_20180312204841272
Datasheet	EN_Sanyo Denki_Datasheet_20241107172746542

Specifications

Manufacturer name: Sanyo Denki

Product name: 109S078UL

Product classification: AC fan motor

Lifecycle Status: Active

RoHS: RoHS

Frame size: 120X38mm

Thickness: 38mm

Maximum air volume: 2.5|2.9m3/min

Maximum static pressure: 579|68.7Pa

Sound pressure level: 42|45dB

Other names: 1688-1936 | 109S078UL-ND

Rated Voltage(AC): 200VAC

Rated current: 0.140A

Rated power: 18|16W

Type: AC Fan

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
