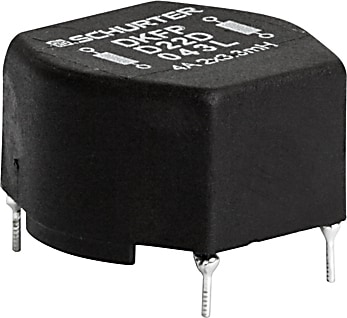

DKFP-G22G-0210 Schurter Common Mode Chokes - 商品詳細情報

DKFP-G22G-0210

Schurter

Common Mode Chokes

Search Alternative Products

Show Similar

DKFP-G22G-0210

Product Overview

Common Mode Chokes Dual 10mH 2A 245mOhm DCR Thru-Hole

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Search Alternative Products

Show Similar

Product Overview

Common Mode Chokes Dual 10mH 2A 245mOhm DCR Thru-Hole

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Schurter_Datasheet_20150210195932720
Datasheet	EN_Schurter_Datasheet_20180315162155834

Specifications

Manufacturer name: Schurter

Product name: DKFP-G22G-0210

Product classification: Common Mode Chokes

Lifecycle Status: Active

RoHS: RoHS

Inductance: 10mH

Rated current: 2A

Height: 19.5mm

Length: 34mm

Rated Voltage(AC): 250VAC

Width: 33mm

Circuit configuration: Dual

Type: Power Line

If you find an error in the product information, please let us know here.
