KRL5025E-C-R003-F-T5 Susumu Shunt resistor/Current sensing resistor - 商品詳細情報

KRL5025E-C-R003-F-T5

Susumu

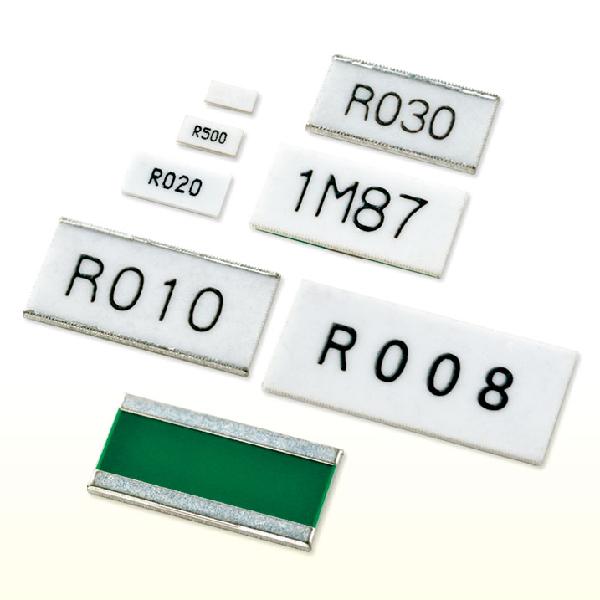

Shunt resistor/Current sensing resistor

Search Alternative Products

Show Similar

KRL5025E-C-R003-F-T5

Susumu

Shunt resistor/Current sensing resistor

Susumu

Shunt resistor/Current sensing resistor

Lifecycle Status : Active

HTSN : 8533210030

Search Alternative Products

Show Similar

Lifecycle Status : Active

HTSN : 8533210030

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Susumu

Product name: KRL5025E-C-R003-F-T5

Product classification: Shunt resistor/Current sensing resistor

Lifecycle Status: Active

RoHS: RoHS

Resistance value: 3mΩ

Tolerance: 1%

Rated power: 2W

Temperature coefficient: ±50㏙/℃

Size: 5.00X2.50X0.50mm

Maximum service temperature: 175℃

Minimum service temperature: -55℃

Length: 2.50㎜

Width: 5.00㎜

Height: 0.50㎜

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 5000
