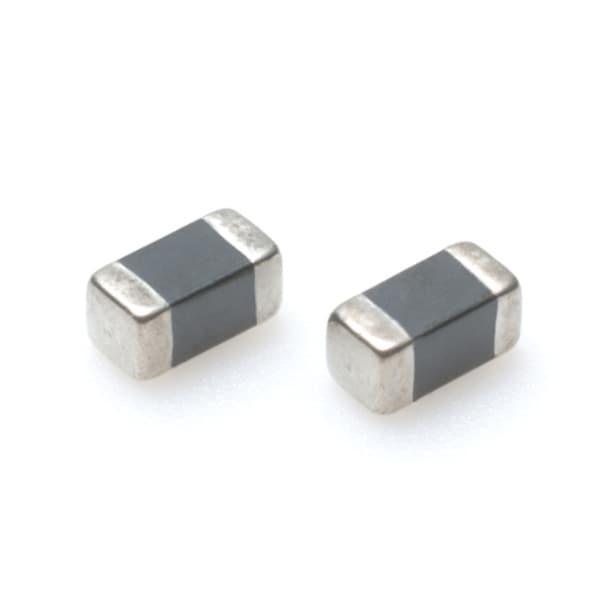

MLF1608E5R6J

TDK

Inductor Surface Mount

Search Alternative Products

Show Similar

MLF1608E5R6J

TDK

Inductor Surface Mount

TDK

Inductor Surface Mount

Product Overview

Ind Shielded Multi-Layer 5.6uH 5% 4MHz 35Q-Factor Ferrite 15mA 0603

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Search Alternative Products

Show Similar

Product Overview

Ind Shielded Multi-Layer 5.6uH 5% 4MHz 35Q-Factor Ferrite 15mA 0603

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_TDK_Datasheet_20150403075932857

Specifications

Manufacturer name: TDK

Product name: MLF1608E5R6J

Product classification: Inductor Surface Mount

Lifecycle Status: Active

RoHS: RoHS

Series name: MLF

Inductance: 5.6uH

Inductance tolerance: 5%

Rated current: 15mA

Shield: Shielded

Direct-current resistance: 1.1Ohm

Q-value: 35

Self-Resonant Frequency: 45MHz

Inductance Frequency -Test: 4MHz

Package: 1608(0603inch)

Size: 1.60X0.80X0.80mm

Height: 0.80mm

Length: 1.60mm

Width: 0.80mm

Purpose: High Frequency

Maximum service temperature: 125C

Minimum service temperature: -55C

Core: Ferrite

Maximum operating temperature: 125C

Minimum operating temperature: -55C

Q Frequency-Test: 4MHz

Shape/Type: Multilayer

Tolerance: 5%

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 4000
