MLF2012DR56MT000 TDK Inductor Surface Mount - 商品詳細情報

MLF2012DR56MT000

TDK

Inductor Surface Mount

Search Alternative Products

Show Similar

MLF2012DR56MT000

TDK

Inductor Surface Mount

TDK

Inductor Surface Mount

Product Overview

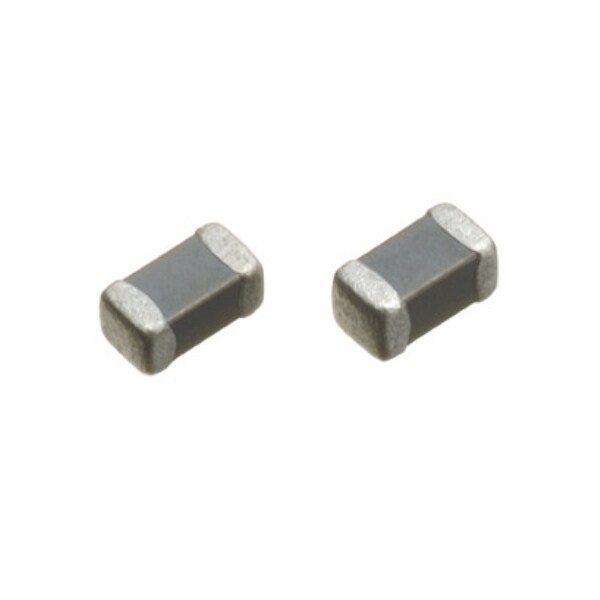

Inductor RF Chip Shielded Multi-Layer 560nH 20% 25MHz 25Q-Factor Ferrite 150mA 550mOhm DCR 0805 Blister T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Search Alternative Products

Show Similar

Product Overview

Inductor RF Chip Shielded Multi-Layer 560nH 20% 25MHz 25Q-Factor Ferrite 150mA 550mOhm DCR 0805 Blister T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: TDK

Product name: MLF2012DR56MT000

Product classification: Inductor Surface Mount

Lifecycle Status: Active

RoHS: RoHS

Series name: MLF

Inductance: 560nH

Inductance tolerance: 20%

Rated current: 0.15A

Shield: シールド付き

Direct-current resistance: 550mOhm max

Q-value: 25@25MHz

Self-Resonant Frequency: 150MHz

Operating temperature range: -55 to 125C

Inductance Frequency -Test: 25MHz

Package: 2125(0805inch)

Size: 2x1.25mm

Height: 1.45mm

Length: 2mm

Width: 1.25mm

Purpose: Standard Circuits

Maximum service temperature: 125C

Minimum service temperature: -55C

Other names: 445-8992-2 | 445-8992-1 | MLF2012DR56MT000-ND | MLF2012DR56M-ND | MLF2012DR56M | 445-8992-6 | MLF2012DR56MT000INACTIVE

Core: Ferrite

Maximum direct-current resistance: 0.55Ohm

Q Frequency-Test: 25MHz

Shape/Type: Multilayer

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 4000

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_TDK_Datasheet_20150323180641636
Certificate
Certificate of REACH Compliance	EN_TDK_Certificate of REACH Compliance_20240719184515134
Certificate of RoHS Compliance	EN_TDK_Certificate of RoHS Compliance_20240719165727665
