ZCAT2235-1030A-BK TDK Ferrite clamp - 商品詳細情報

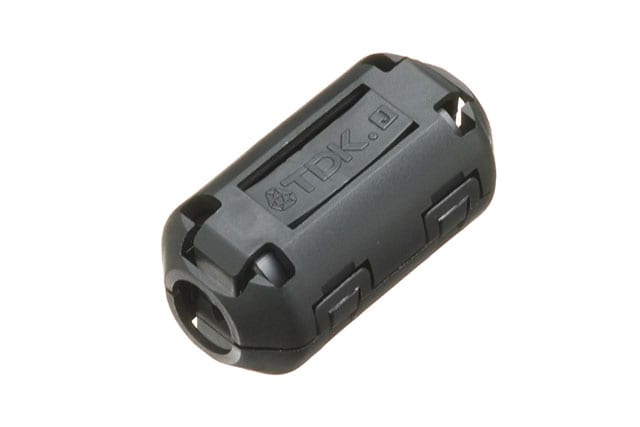

ZCAT2235-1030A-BK

TDK

Ferrite clamp

代替品検索

類似スペック品検索

ZCAT2235-1030A-BK

ライフサイクル : 量産中

ECCN : EAR99

HTSN : 8504909630

代替品検索

類似スペック品検索

ライフサイクル : 量産中

ECCN : EAR99

HTSN : 8504909630

製品情報

データシート
3D CAD情報
- SamacSys
フットプリント/シンボル/3D CAD情報

製品仕様

メーカ名: TDK

製品名: ZCAT2235-1030A-BK

製品分類: Ferrite clamp

ライフサイクル: 量産中

シリーズ名: ZCAT

適用ケーブル外径: 8 to 10mm

インピーダンス: 50Ohm(10-100MHz)|100Ohm(100-500MHz)

サイズ: φ21.50X35.00mm

外形色: 黒

幅: 20mm

長さ: 35mm

高さ: 21.5mm

その他の型番/品番: ZCAT22351030ABK | 445-2051

製品情報に誤りがございましたら、こちらからご指摘ください。

製品説明

製品情報

データシート
データシート(English)
証明書
RoHS指令適合証明書(English)	EN_TDK_Certificate of RoHS Compliance_20240719170236431
REACH指令適合証明書(English)	EN_TDK_Certificate of REACH Compliance_20240719185138415
