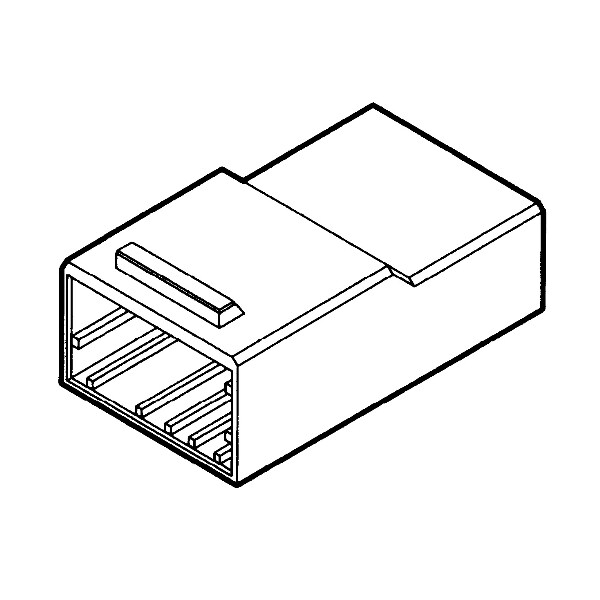

1-1318115-3 TE Connectivity Connector Discrete Wire Housing - 商品詳細情報
代替品検索
製品仕様
- メーカ名
- TE Connectivity
- 製品名
- 1-1318115-3
- ライフサイクル
- Active
- RoHS
- RoHS対応
- Other names
- 113181153 | 2266-1-1318115-3 | -1-1318115-3-SI | A29785 | 3937-1-1318115-3 | -1-1318115-3-CSI
- Color
- Black
- Connector Type
- Plug
- Contact Type
- Male Pin
- Contact resistance
- below 10m Ohm
- Fastening Type
- Fixed Lamp
- Feature
- Polarization Key
- Height
- 14.7mm
- Housing material
- PBT/UL94V-0
- KontakTbeendigung
- Crimping
- Length
- 10.2mm
- Maximum operating temperature
- 105C
- Maximum service temperature
- 105°C
- Minimum service temperature
- -55°C
- Mounting Type
- Free Hanging
- Number of arrays
- 2
- Number of positions
- 6
- Pitch
- 2.5mm
- Rated Voltage(DC)
- 250V
- Rated current
- 5A
- Series name
- Dynamic D-2100
- Shape/Type
- Hanging type
- Type
- Housing
- Width
- 30.69mm
- Wire connection method
- pressure bonding
- Withstanding Voltage
- 1500VAC/1min.
- メーカ荷姿
- Pack
- メーカ梱包数量
- 3200
