36401E7N2ATDF TE Connectivity Inductor Surface Mount - 商品詳細情報

36401E7N2ATDF

TE Connectivity

Inductor Surface Mount

Search Alternative Products

Show Similar

36401E7N2ATDF

TE Connectivity

Inductor Surface Mount

TE Connectivity

Inductor Surface Mount

Product Overview

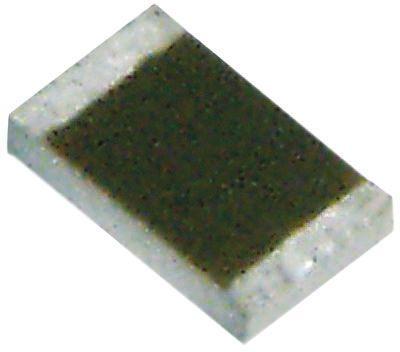

Inductor High Frequency Chip Molded/Unshielded Thin Film 7.2nH 0.2nH 500MHz 13Q-Factor 260mA 1.05Ohm DCR 0402 T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Search Alternative Products

Show Similar

Product Overview

Inductor High Frequency Chip Molded/Unshielded Thin Film 7.2nH 0.2nH 500MHz 13Q-Factor 260mA 1.05Ohm DCR 0402 T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: TE Connectivity

Product name: 36401E7N2ATDF

Product classification: Inductor Surface Mount

Lifecycle Status: Active

RoHS: RoHS

Type: Thin Film

Inductance: 7.2nH

Rated current: 260mA

Q-value: 13@500MHz

Self-Resonant Frequency: 6GHz

Inductance Frequency -Test: 500MHz

Height: 0.37mm

Length: 1.05mm

Width: 0.55mm

Other names: A129491DKR | 36401E7N2ATDF-ND | A129491CT | 6-1624108-3 | A129491TR

Tolerance: 0.2nH

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_TE Connectivity_Datasheet_20140611191311906
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
