ADP0404 TE Connectivity DIP Switch - 商品詳細情報

ADP0404

TE Connectivity

DIP Switch

Search Alternative Products

Show Similar

ADP0404

Product Overview

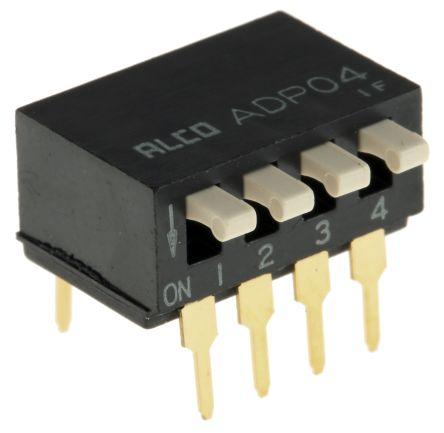

Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509032

Search Alternative Products

Show Similar

Product Overview

Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509032

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: TE Connectivity

Product name: ADP0404

Product classification: DIP Switch

Lifecycle Status: Active

RoHS: RoHS

Circuit: SPST

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_TE Connectivity_Datasheet_20141231033028220
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
