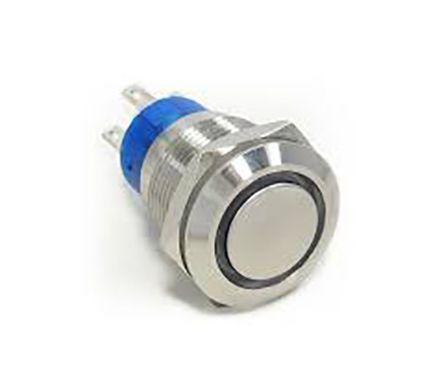

AV2220E612Q04 TE Connectivity Push Button Switch - 商品詳細情報

AV2220E612Q04

TE Connectivity

Push Button Switch

Search Alternative Products

Show Similar

AV2220E612Q04

Search Alternative Products

Show Similar

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: TE Connectivity

Product name: AV2220E612Q04

Product classification: Push Button Switch

Series name: AV22

Rated current: 3A

Rated Voltage(AC): 250VAC

Color of operation button: Silver

Circuit: DPST-NO

Feature: 移動LEDリング

Illumination Voltage: DC12V

Luminescent color: LED/Green

Mounting Type: Front panel mount

Operating temperature range: -20 to 55C

Panel Cutout Dimensions: Circular/22.20mm

Shape of the operation part: Round/Button/Flash

Switch characteristics: OFF-Mom

Terminal shape: Solder Lug

Type: Anti-Vandal/Illuminated

Waterproof property: IP67
