FSM4JSMATR  TE Connectivity  Tactile Switch  -  商品詳細情報

FSM4JSMATR

TE Connectivity

Tactile Switch

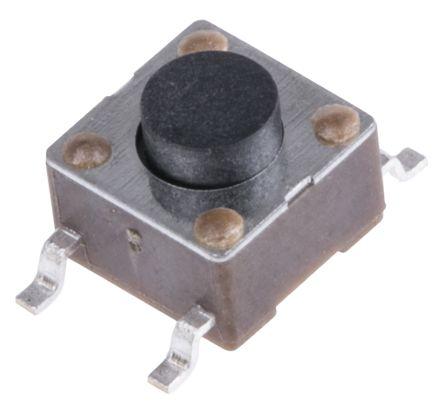

FSM4JSMATR TE Connectivity

The images are for reference only. For the precise specifications, refer to the product specifications.

Added to bookmarks.

    • Search Alternative Products

    FSM4JSMATR

    FSM4JSMATR

    TE Connectivity

    Tactile Switch

    TE Connectivity

    Tactile Switch

    Added to bookmarks.
    • Product Overview

    Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD T/R

    Lifecycle Status : Active
    ECCN : EAR99

    HTSN : 8536509031

    Search Alternative Products

    Product Overview

    Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD T/R

    Lifecycle Status : Active
    ECCN : EAR99

    HTSN : 8536509031

    Product Information

    Related Videos
    Data sheet
    Design/Simulation Data
    Symbol/Footprint/3D Model(UltraLibrarian) Download from Ultra Librarian
    Other Documents
    Data Sheet
    Datasheet EN_TE Connectivity_Datasheet_20141217110649273
    Design and Simulation Data
    Symbol/Footprint/3D Model(UltraLibrarian) Download from Ultra Librarian

    Specifications

    Manufacturer name
    TE Connectivity
    Product name
    FSM4JSMATR
    Product classification
    Tactile Switch
    Lifecycle Status
    Active
    RoHS
    RoHS
    Actuating force
    1.57N
    Series name
    FSMJSMA
    Rated current
    50mA
    Rated Voltage(DC)
    12V
    Shape of the operation part
    Standard
    Size
    6x6mm
    Contact point finish
    Silver
    Height
    5.25mm
    Length
    10mm
    Maximum service temperature
    85°C
    Minimum service temperature
    -20°C
    Other names
    450-1759-6 | Q6910470 | 450-1759-1 | 4-1437565-2 | 450-1759-2 | FSM4JSMATR-ND
    Width
    10mm
    Actuator Height
    5mm
    Actuator position
    Top Actuated
    Circuit
    SPST-NO
    Contact Rating @ Voltage
    0.05A@24VDC
    Functional operation
    OFF (ON)
    Illumination
    No Lighting
    Maximum rated voltage
    12V
    Mounting Type
    Surface Mount
    Operating temperature
    -35 to 85C
    Operational function
    Off-mom
    Terminal
    Gull Wing
    Working Load
    160gf

    If you find an error in the product information, please let us know here.
