Specifications
- Manufacturer name
- THine Electronics
- Product name

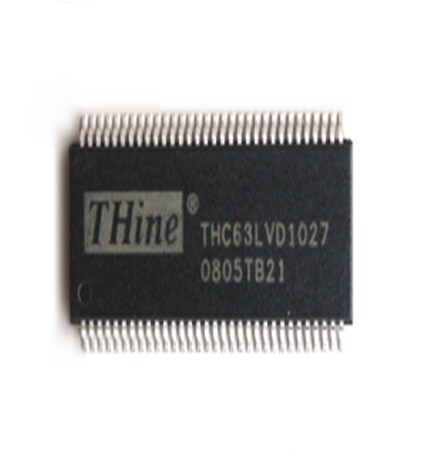

- THC63LVD1027
- Product classification
- LVDS
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Power-supply voltage
- 3 to 3.6V
- Package
- TSSOP -64 8.1mm x 17mm
- Number of drivers/receivers
- 2/0
- Type
- Repeater
- Protocol
- LVDS
- Power-supply voltage standard
- 3.3V
- Operating temperature range
- -40 to 85C
- Consumption current
- 210mA max. @RL=100Ω/CL=5pF/f=85MHz/RS=Vcc, Single-in/Dual-out
- Function
- Repeater
- Speed
- 20 to 85MHz
- Input signal
- LVDS
- Output signal
- LVDS
- Manufacturer Packaging
- Tray
- Manufacturer packaging quantity
- 176
- Related Products
-
Here are evaluation boards for this product
If you find an error in the product information, please let us know here.
Details
- The THC63LVD1027, a Dual Pixel Link LVDS repeater IC, is designed to support pixel data transmission between Host and Flat Panel Display up to 1080p/UXGA resolution. It supports to reform LVDS wave forms into ones with wide-open and low-noise Eye diagram, Multiplex and De-Multiplex LVDS signals to reduce the number of transmission lines, Duplicate signal from 1 port and Distribute them from 2 ports at the same time.
■Features
・LVDS to LVDS Repeater/Distributor
・5ch LVDS 2ports (Dual Pixel Link) input
35bits/pixel
170Mpixel/sec.（Clock Freq. 20 to 85MHz）
Wide LVDS input skew margin ±480ps at 75MHz
Failsafe supported
・5ch LVDS 2ports (Dual Pixel Link) output
35bits/pixel
170Mpixel/sec.（Clock Freq. 20 to 85MHz）
LVDS swing mode to reduce EMI
・MUX/De-MUX Function available
For example, SXGA 60Hz, 108Mpps
1port（108MHz）2port（54MHz）
・Power Supply：3.3V
・Operation Temperature：-40℃ - +85℃
・Package：TSSOP64 with Esposed Pad
■Application
・Medium and Small Size Panel
・Projector
・Security Camera / Industrial Camera
・Multi Function Printer
・Industrial Equipement
・Medical Equipment Monitor
