Specifications
- Manufacturer name
- THine Electronics
- Product name
- THC63LVD1027D
- Product classification
- LVDS
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Power-supply voltage
- 3.3V
- Package
- TSSOP 64pin Exposed Pad
- Operating temperature range
- -40 to 105℃
- Function
- Repeater
- Speed
- 20 to 85MHz
- Input signal
- LVDS
- Output signal
- LVDS
- Manufacturer Packaging
- Tray
- Manufacturer packaging quantity
- 176
- Related Products
-
Here are evaluation boards for this product
If you find an error in the product information, please let us know here.
Details

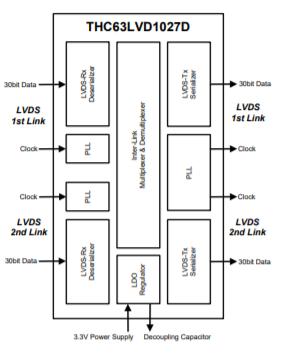

- The THC63LVD1027D, a Dual Pixel Link LVDS repeater IC, is designed to support pixel data transmission between Host and Flat Panel Display up to 1080p/WUXGA resolution. It supports to reform LVDS wave forms into ones with wide-open and low-noise Eye diagram, Multiplex and De-Multiplex LVDS signals to reduce the number of transmission lines, Duplicate signal from 1 port and Distribute them from 2 ports at the same time.
-5ch LVDS 2ports (Dual Pixel Link) input
35bits/pixel
170Mpixel/sec. (Clock Freq. 20 to 85MHz)
Wide LVDS input skew margin ±480ps at 75MHz
Failsafe supported
-5ch LVDS 2ports (Dual Pixel Link) output
35bits/pixel
170Mpixel/sec. (Clock Freq. 20 to 85MHz)
LVDS swing mode to reduce EMI
-MUX/De-MUX Function available
(Single to Dual / Dual to Single)
For example, 1080p 60Hz, 150Mpps
1port(150MHz)→2port(75MHz)
-Data Distribution (Duplicate) available
- -40 to 105°C
(Single in / Dual out, Distribution)*
- -40 to 85°C
(Dual in / Dual out, Dual in / Single out)
・Medium and Small Size Panel
・Projector
・Security Camera / Industrial Camera
・Multi Function Printer
・Industrial Equipement
・Medical Equipment Monitor
