Specifications
- Manufacturer name
- THine Electronics
- Product name

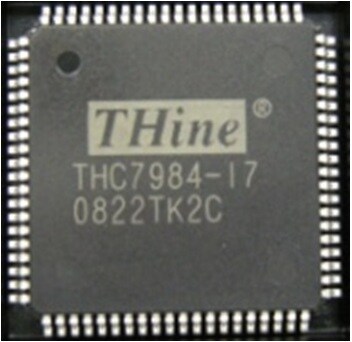

- THC7984-17
- Product classification
- AD Converters (ADC)
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Resolution capability
- 14bit
- Sampling rate
- 170Msps
- Number of circuits
- 3
- Power-supply voltage standard
- 1.8|3.3V
- Package
- LQFP-64
- Manufacturer Packaging
- Tray
- Manufacturer packaging quantity
- 90
If you find an error in the product information, please let us know here.
Details
- The THC7984 is newly-evolved version of the THC7981 and improves the functionality and quality even further. In addition to the internal 14-bit ADCs that realize the excellent linearity and the intelligent sync processor, the THC7984 includes low pass filters for component video that has been added externally so far.The THC7984 is pin-compatible with the THC7980/THC7981/THC7983(End-of-life products), which simplifies replacement from them.
-170 MSPS 10-bit ADC - Internal 14-bit ADCs
-Line-locked PLL with low jitter - Phase adjustment: 64 steps
-Low pass filter – cutoff frequency: 28 steps（6 to 310MHz）
-Fine clamp / preamp
Clamp level auto adjust
Gain adjustment: 2048 steps
-Sync Processor
2-level / 3-level sync slicer
Advanced sync detection / measurement
-Automatic sync processing mode
2-wire serial interface
-Acceptable Signals
PC Graphics (RGB): VGA-UXGA
Separate Sync
Composite Sync
Sync on Green
Component Video (YPbPr): 480i-1080p
Copy Protection Signal
