THCV236 THine Electronics Gigabit transmission IC - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- THine Electronics
- Product name
- THCV236
- Product classification
- Gigabit transmission IC
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Input signal
- V-by-One® HS
- Output signal
- LVCMOS
- Power-supply voltage
- 1.7 to 3.6V
- Operating temperature range
- -40 to 105C
- Function
- Deserializer
- Package
- QFN-64
- Speed
- 6 to 160MHz
- Manufacturer Packaging
- Tray
- Manufacturer packaging quantity
- 260
- Related Products
-
Here are evaluation boards for this product
If you find an error in the product information, please let us know here.
Details
- The THCV236 video data de-serializer provides long distance and high speed video data link solution for camera and display serial interface. It has high speed video data channel and low speed bidirectional control channel over the link. The high speed video data link is designed to support 1080p60 video signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/UART/GPIO.
-CML serial to LVCMOS parallel conversion
-CML serial video input
4.0Gbps（effective rate 3.2Gbps）/lane
-LVCMOS parallel video output
32bit/pixel
1.8-3.3V (JEDEC)
-RGB⇔YCbCr color space conversion
ITU-R.BT601/BT709
-Adaptive cable equalization
-Single power supply：1.7V-3.6V
-Bi-directional system control link with I2C/UART//GPIO
-Package：QFN64
-Operating temp：-40 to 105℃

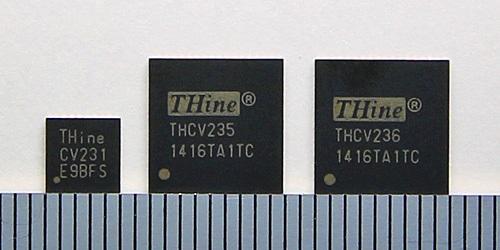

THCV231
THCV235
THCV241A
Surveillance
Machine vision
Industrial cameras
Medical cameras
Drive recorder
