THCV242A THine Electronics Gigabit transmission IC - 商品詳細情報
加工依頼
规格
- 制造商名称
- THine Electronics
- 制品名
- THCV242A
- 生命周期状态
- Active
- RoHS
- RoHS2
- Input signal
- V-by-One® HS
- Output signal
- MIPI(R) CSI-2
- Power-supply voltage
- 1.7 to 3.6V
- Operating temperature range
- -40 to 105C
- Function
- Deserializer

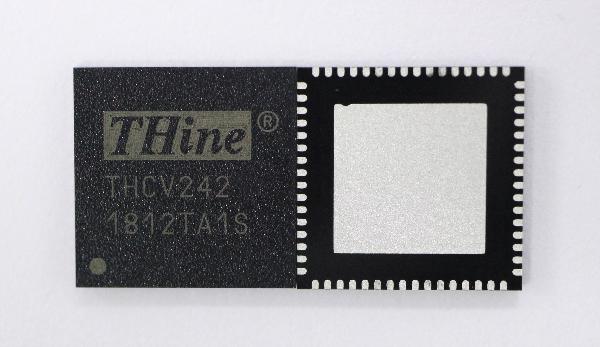

- Package
- QFN-64
- Speed
- 1.2Gbps/Lane
- Consumption current
- 124.8mA
- 原厂包装
- Tray
- 制造商数量
- 260
- 相关商品
-
Here are evaluation boards for this product
如果产品信息中有错误，请在此处指出。
产品说明

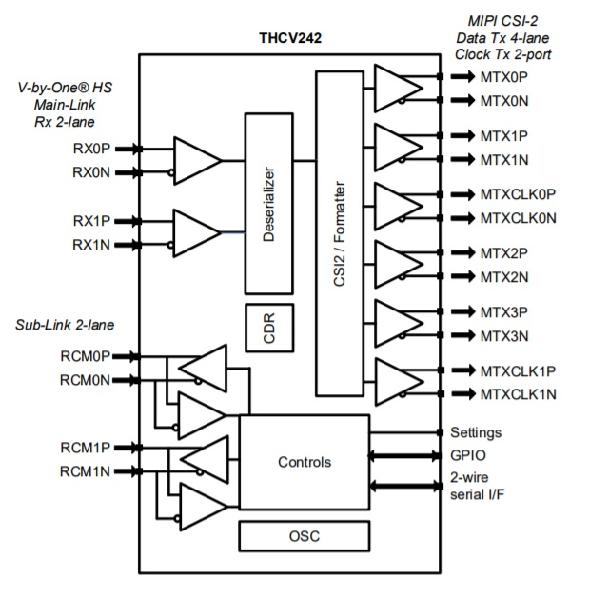

- The THCV242 is a receiver to deserialize 2ch of V-by-One® HS to 4ch of MIPI® CSI-2 signals. It handles 2 cameras at max.
V-by-One® HS is a high-speed gigabit serial interface technology with 4.0Gbps data rate. THCV242 receives 1080p60 FHD (2M pixels) signals reaching from 15m long far via 1 pair of twist cable or one coaxial cable.
The THCV242 has bi-directional communication channel called "Sub-Link" which bridges lower speed signals (e.g. GPIO). Sub-Link can be transmitted/received over the V-by-One® HS as well, which gives users more flexibility in designing of systems.
-Input:V-by-One(R) HS
Maximum data rate : 4.0Gbps/lane
Channel : 1 or 2 lanes
-Output:MIPI(R) CSI-2
Maximum data rate : 1.2Gbps/lane
Channel : 1,2,4 lanes
-Bi-directional communication "Sub-Link", I2C/GPIO

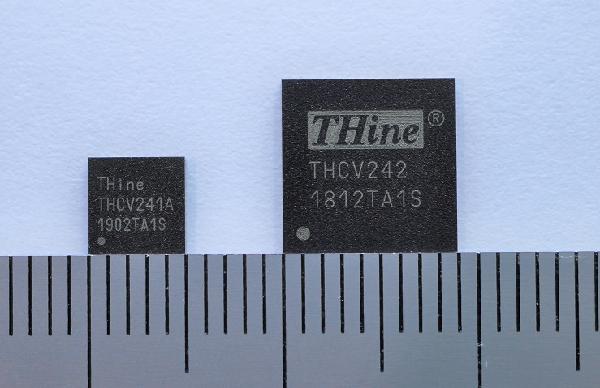

THCV241A
THCV231
THCV235
-Surveillance Camera
-Machine Vision
-FA Camera
-Endoscope
-Drive Recorder
