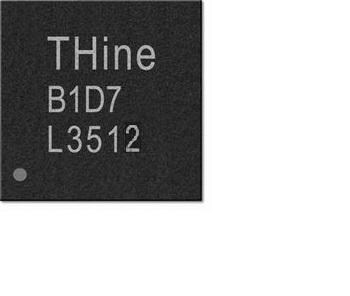

THL3512 THine Electronics LED Drivers - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- THine Electronics
- Product name
- THL3512
- Product classification
- LED Drivers
- Lifecycle Status
- Active
- RoHS
- RoHS2
- Power-supply voltage
- 3 to 5.5V
- Maximum power current
- 25mA
- Package
- QFN-48
- Maximum output current
- 100mA
- Number of channels
- 24
- Operating temperature range
- -40 to 85C
- Manufacturer Packaging
- Tray
- Manufacturer packaging quantity
- 260
If you find an error in the product information, please let us know here.
Details
- The THL3512 is an LED driver with 24 channel opendrain outputs.The embedded oscillator and PWM controller individually generates 256-step brightness set by the dedicated registers for each channel.The serial interface of 2-pair LVDS lines(clock and data) features high-level noise tolerance, high-speed, and long-distance transmission.The LVDS allowing cascaded and multidrop connection offers the maximum flexibility for designers to place and connect LED drivers.The simple and one-way communication protocol is easily-controlled and requires less CPU resources.
■Features
・24 channels Open-Drain Outputs
・Output Sink Current Max.100mA/ch
・Output Voltage Max. 40V
・256 steps Individual Brightness Control
・Output disable/enable
・2-pair Serial LVDS Input or 3-wire Serial CMOS Input Max.10Mbps
・Converting 3-wire Serial CMOS Input to 2-pair Serial LVDS Output
・2-pair Serial LVDS Repeater
・Device Address Selection up to 62 addresses
・General call to all devices
・Protection Circuits UVLO, Overcurrent Protection, Thermal Shutdown
・Package : QFN48 (Exposed Pad)
■For the following interface
・Amusement
・LED Backlight
・LED Display
・Digital Signage
・Illumination
