TCA9554APWR Texas Instruments I/O Expanders - 商品詳細情報

TCA9554APWR

Texas Instruments

I/O Expanders

Search Alternative Products

Show Similar

TCA9554APWR

Product Overview

I2C/SMBus GPIO Expander 100kHz/400kHz 5.5V 16-Pin TSSOP T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Search Alternative Products

Show Similar

Product Overview

I2C/SMBus GPIO Expander 100kHz/400kHz 5.5V 16-Pin TSSOP T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390000

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Texas Instruments

Product name: TCA9554APWR

Product classification: I/O Expanders

Lifecycle Status: Active

RoHS: RoHS

Type: I2C|SMBus

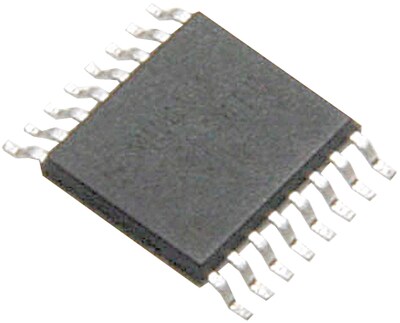

Package: TSSOP

Number of poles of the contact point: 16

Reset: No

Supply current: 1.65V

Maximum rated power: 5.5V

ESD protection: Yes

Output type: Open Drain

Minimum operating temperature: -40C

Maximum operating temperature: 85C

Other names: TEXTISTCA9554APWR | 296-28120-1 | -296-28120-1-ND | 296-28120-2 | 2156-TCA9554APWR | -TCA9554APWR-NDR | 296-28120-6

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 2000

If you find an error in the product information, please let us know here.
