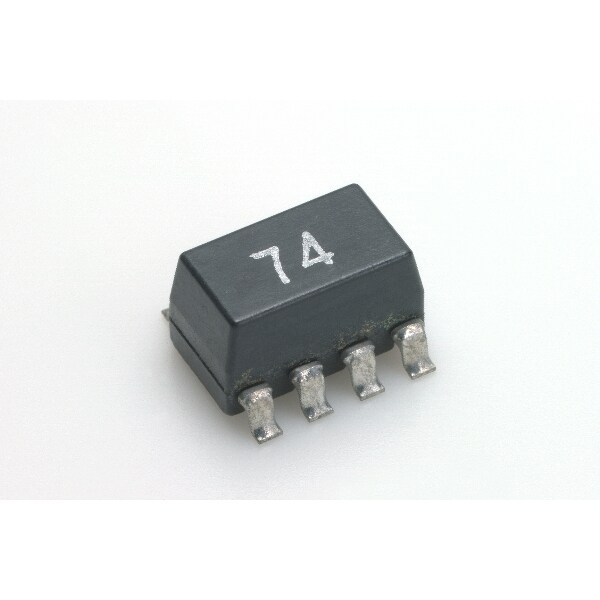

M-542C Tokin Common Mode Chokes - 商品詳細情報

M-542C

Tokin

Common Mode Chokes

Search Alternative Products

Show Similar

M-542C

ECCN : EAR99

Search Alternative Products

Show Similar

ECCN : EAR99

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Tokin

Product name: M-542C

Product classification: Common Mode Chokes

Impedance: 200Ohm

Series name: M-500C

Rated current: 500mA

Direct-current resistance: 120mOhm

Package: SMD

Size: 9.8×5.6×6.0mm

Height: 6mm

Length: 9.8mm

Maximum service temperature: +75°C

Minimum service temperature: -20°C

Rated Voltage(DC): 50V

Width: 5.6mm

If you find an error in the product information, please let us know here.
