IHD1EB101L Vishay Inductor Leaded - 商品詳細情報

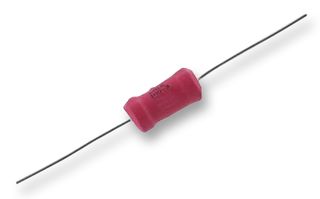

IHD1EB101L

Vishay

Inductor Leaded

Search Alternative Products

Show Similar

IHD1EB101L

Product Overview

Inductor High Current Filter Bobbin Core 100uH 15% 1KHz Ferrite 1.1A 208mOhm DCR AXL Bulk

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Search Alternative Products

Show Similar

Product Overview

Inductor High Current Filter Bobbin Core 100uH 15% 1KHz Ferrite 1.1A 208mOhm DCR AXL Bulk

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8504508000

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Vishay

Product name: IHD1EB101L

Product classification: Inductor Leaded

Lifecycle Status: Active

RoHS: RoHS

Inductance: 100uH

Rated current: 1.1A

Inductance Frequency -Test: 1kHz

Length: 17.78mm

Maximum operating temperature: 125C

Minimum operating temperature: -55C

Tolerance: 15%

Type: Wirewound

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Vishay_Datasheet_20180328155820547
Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
