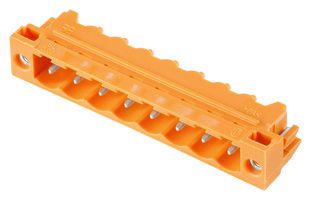

1149410000 Weidmuller Terminal Blocks - 商品詳細情報

1149410000

Weidmuller

Terminal Blocks

代替品検索

類似スペック品検索

1149410000

ライフサイクル : Unconfirmed

ECCN : EAR99

HTSN : 8536694040

代替品検索

類似スペック品検索

ライフサイクル : Unconfirmed

ECCN : EAR99

HTSN : 8536694040

製品情報

3D CAD情報
- SamacSys
- UltraLibrarian
フットプリント/シンボル/3D CAD情報

製品仕様

メーカ名: Weidmuller

製品名: 1149410000

製品分類: Terminal Blocks

ライフサイクル: Unconfirmed

Series name: Omnimate SL

Pitch: 5.08mm

Type: Header/Male Pin/With Shroud(4-sides)

Color: Orange

Mounting Type: Through Hole

Positions / Level: 3

Number of positions: 3

Number of Levels: 1

Contact Type: Solder

Contact Mating Finish: Tin

Voltage (UL): 300V

Voltage (IEC): 400V

Current (UL): 18.5A

Current (IEC): 24A

Operating temperature range: -50 to 100C

Feature: 嵌合フランジ/はんだ保持

Header Orientation: 90°/Right Angle

製品情報に誤りがございましたら、こちらからご指摘ください。

製品情報

Design and Simulation Data
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian

Expected Shipping Date : Jul-07-25

C1S品番
:
C1S809200359666

Ship-from

Hongkong

Stock : 114

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 1/1
Minimum: 1 Multiples: 1

Packaging:Bulk

Bulk
Bulk is a package which the separete parts are packed in a bag, or packed individually.

Quantity	Pricing(RMB) VAT included
1+	¥43.279000
10+	¥23.504000
72+	¥16.950000

Price: ¥43.279

Merchandise total: ¥43

Processing costs, etc.: ¥0

Total(JPY): ¥43
