W9812G6KH-6 Winbond Electronics DRAM - 商品詳細情報

W9812G6KH-6

Winbond Electronics

DRAM

Search Alternative Products

Show Similar

W9812G6KH-6

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542320001

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542320001

Product Information

Data sheet
3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: Winbond Electronics

Product name: W9812G6KH-6

Product classification: DRAM

Lifecycle Status: Active

RoHS: RoHS

Type: SDRAM

Memory capacity: 128Mb

Memory configuration: 8Mx16

Speed: 166MHz

Power-supply voltage: 3 to 3.6V

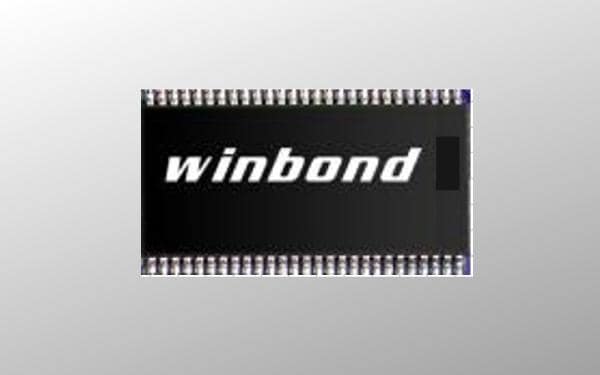

Package: 54-TSOP

Memory size: 128M

Mounting Type: Surface Mount

Operating temperature range: 0 to 70C

Series name: W9812

Manufacturer Packaging: Tray

Manufacturer packaging quantity: 108

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Winbond Electronics_Datasheet_20150422001932285
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Winbond Electronics_Symbol/Footprint/3D Model_20210224103754362
Symbol/Footprint/3D Model(UltraLibrarian)	Download from Ultra Librarian
