For 1.5A large current control and 110 degrees Celsius operation



July 11, 2016

TOKYO—Toshiba Corporation’s (TOKYO: 6502) Storage & Electronic Devices Solutions Company today announced the launch of photorelays in the industry's smallest[1] package. Shipments start from today.


The new product, "TLP3406S", utilizes the industry's smallest package for photorelays, the Toshiba-developed S-VSON4 package. Compared to Toshiba’s previous products in a VSON4 package, the new photorelay has an approximately 22.5%[2] smaller assembly area, which can contribute to the development of smaller test boards and also make it possible to increase the number of photorelays on a board to increase density. Since the new photorelay can drive large currents of up to 1.5A, in spite of its small package, it can be used in device power supplies (DPS) that make up the power supply circuits in various testers. As a further positive, the operating temperature range has been enhanced from 85 degrees Celsius (max.) to 110 degrees Celsius (max.).


Main Applications
ATE (Automatic Test Equipment), memory testers, SoC/LSI testers and probe cards

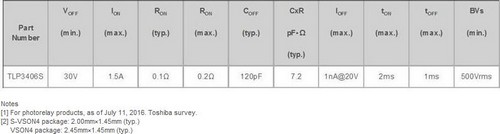

Main Specifications



Follow the links below for more on Toshiba photorelays.

http://toshiba.semicon-storage.com/ap-en/product/opto/photocoupler/photorelay.html?mm=cp160711&no=13

Information in this document, including product prices and specifications, content of services and contact information, is correct on the date of the announcement but is subject to change without prior notice.
