CMM-2718AB-383161-TR Same Sky (formerly CUI Devices) Microphone - 商品詳細情報

CMM-2718AB-383161-TR

Same Sky (formerly CUI Devices)

Microphone

Search Alternative Products

Show Similar

CMM-2718AB-383161-TR

Same Sky (formerly CUI Devices)

Microphone

Same Sky (formerly CUI Devices)

Microphone

Product Overview

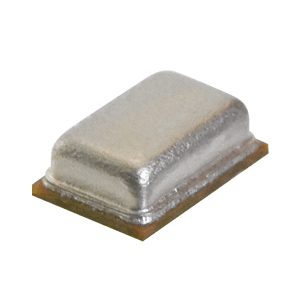

2.75 x 1.85 mm, Analog, Bottom Port, Surface Mount, 2.0 Vdc, -38 ±3 dB, MEMS Microphone

ECCN : EAR99

HTSN : 8518108030

Search Alternative Products

Show Similar

Product Overview

2.75 x 1.85 mm, Analog, Bottom Port, Surface Mount, 2.0 Vdc, -38 ±3 dB, MEMS Microphone

ECCN : EAR99

HTSN : 8518108030

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: CMM-2718AB-383161-TR

Product classification: Microphone

Output impedance: 300Ω

Output type: Analog

Port Style: Bottom

Sensitivity: -38dB

Operating Voltage: 3.6, 1.5Vdc

Operating frequency: 10000, 100Hz

Noise Figure: 61dBA

Terminal: Surface Mount

Shape: Rectangular

Length: 2.75mm

Width: 1.85mm

Height: 0.95mm

Dimension: 0.11, 0.07, 0.04in

Other names: 102-5089-6 | 102-5089-1 | 102-5089-2

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20200305122036746
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204322323
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181737257
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185549821

Expected Shipping Date : Jun-17-25

C1S Part Number
:
C1S158100164107

Ship-from

Hongkong

Country of Origin :

Stock : 626

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 250/1
Minimum: 250 Multiples: 1

Quantity	Pricing(RMB) VAT included
250+	¥0.123170
500+	¥0.086219

Price: ¥0.12317

Merchandise total: ¥30.79

Processing costs, etc.: ¥0

Total(RMB): ¥30.79
