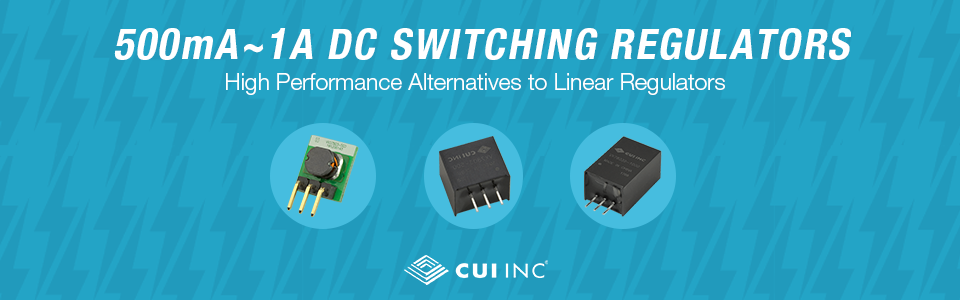

CUI’s VX78 and VXO78 series of non-isolated DC-DC converters are high-performance alternatives to linear regulators. These non-isolated converters are pin out compatible with linear regulators. The VX078-500 and VX078-1000 converters are open-frame, whereas the VX78-1000 and VX78-500 are encapsulated converters. Both series feature 500mA and 1A current options. All of these models do not require a heatsink and are ideally suited for positive and negative output applications. These DC switching regulators deliver efficiencies up to 96%, a wide input voltage range from 4.75V to 36V, and low ripple and noise.

Features

  • Pin-out compatible with linear regulators
  • VXO78-1000 and VXO78-500 are open frame converters
  • VX78-1000 and VX78-500 are encapsulated converters
  • UL and CSA approved
  • Efficiency up to 96%
  • Supports positive and negative output applications
  • Short circuit protection on the output

Specifications

  • -40ºC to +85ºC operating temperature range
  • 4.75V to 36V wide input voltage
  • 0.2mA low no-load input current

VX78series

Model Number Input Voltage (Vdc) Power (W) Output Voltage (Vdc) Output Current (A) Safety Approvals Data sheet
VX7803-500 4.75 ~ 36 1.65 3.3 0.5 CSA, UL

VX7805-500 6.5 ~ 36 2.5 5 0.5 CSA, UL
VX78039-500 12 ~ 36 4.5 9 0.5 CSA, UL
VX78012-500 15 ~ 36 6 12 0.5 CSA, UL
VX7815-500 19 ~ 36 7.5 15 0.5 CSA, UL
VX7803-1000 6 ~ 36 3.3 3.3 1 CSA, UL

VX7805-1000 8 ~ 36 5 5 1 CSA, UL
VX78039-1000 13 ~ 36 9 9 1 CSA, UL
VX78012-1000 16 ~ 36 12 12 1 CSA, UL
VX7815-1000 20 ~ 36 15 15 1 CSA, UL

VXO78series

Model Number Input Voltage (Vdc) Power (W) Output Voltage (Vdc) Output Current (A) Safety Approvals Data sheet
VXO7803-500 4.75 ~ 36 1.65 3.3 0.5 CSA, UL

VXO7805-500 6.5 ~ 36 2.5 5 0.5 CSA, UL
VXO78012-500 15 ~ 36 6 12 0.5 CSA, UL
VXO78015-500 19 ~ 36 7.5 15 0.5 CSA, UL
VXO7803-1000 6 ~ 36 3.3 3.3 1 CSA, UL

VXO7805-1000 8 ~ 36 5 5 1 CSA, UL
VXO78012-1000 16 ~ 36 12 12 1 CSA, UL
VXO78015-1000 20 ~ 36 15 15 1 CSA, UL
