史陶比尔电连接器部门制造高质量的电触点和连接器系统，并为各个产业提供解决方案，在该领域是在全球开展业务的领军企业。コ是在连接器、工业机器人和纺织机械等方面具有领先技术的史陶比尔集团的成员。为了满足市场需求，史陶比尔的电连接器在高性能、安装拆卸次数以及安全性和耐用性方面具有长期可靠性。经验证的MULTILAM技术使其成为工业应用中任何连接的理想连接器。史陶比尔检测产品，用于各种测量。史陶比尔提供最佳产品，可测量从弱电压到中、高电压、直流及高频。这些产品还被用于电子学研究设施和教育机构、服务技术和电子设备分析以及测量设备。
安全插座

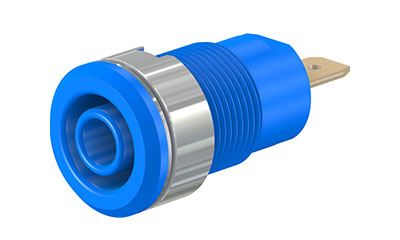

SLB4-F
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Connection: Flat connecting tab 4,8 mm × 0,8 mm.
SLB4-F/N-X
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Connection: Flat connecting tab 4,8 mm × 0,8 mm.
安全测试引线

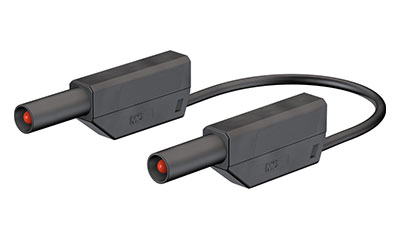

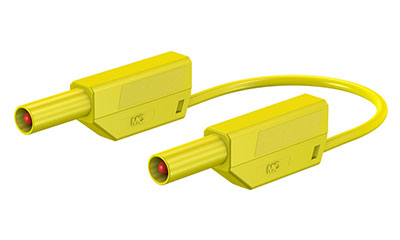

SLK4075-E/N
Highly flexible test leads with insulation in PVC with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.
SLK410-E/SIL
Highly flexible, with insulation in silicone with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.

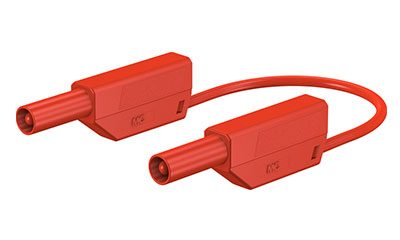

SLK425-E
Highly flexible, with insulation in PVC with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.
SLK425-E/N
Highly flexible, with insulation in PVC with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.

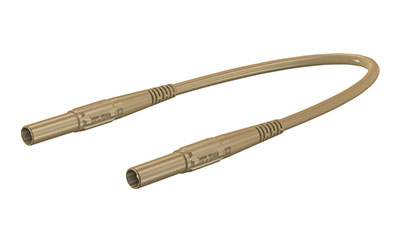

XMF-419
Highly flexible, with insulation in PVC with inline Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
XSMF-419
Highly flexible, with insulation in PVC. With in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3 x 32 mm.
The fuse is not supplied.
安全插头

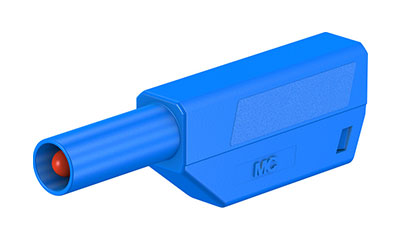

SLS425-SE/Q/N
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Gold-plated version available. Connection: Cross hole for solder connection

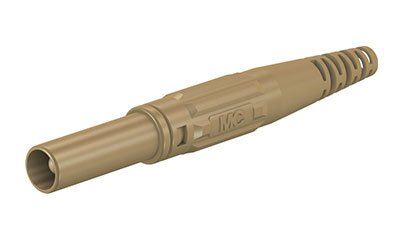

XL-410
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve.
Screw connection.
测试探针和夹子
AB200
With steel jaws especially for connections to ground rails and thick cables. For increased safety when making contacts, the jaws are insulated on the outside. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
BT400
Ø 2 mm, made of Monel®. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
GRIP-F
For making quick, secure contact during voltage measurements. With adjustable stop. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

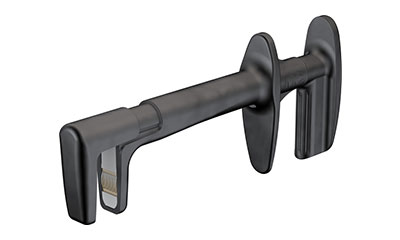

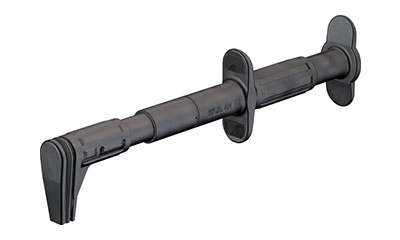

GRIP-FMA
For fast and safe contacting on busbars, for example for the synchronization for standby power units. Powerful contacting on the front and rear of the busbars by means of our established MULTILAM. Fixed Ø 4 mm socket in the pressure grip handle section, to fit spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

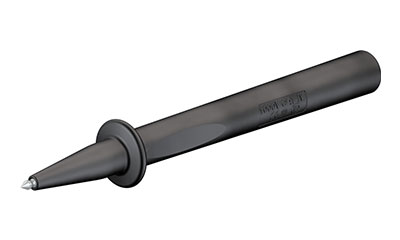

PP-115/2
Polished Ø 2 mm stainless steel tip. Handle guard fl attened on one side to prevent rolling. Also permitting close side-by-side plugging of probes. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Supplied with protective cap.

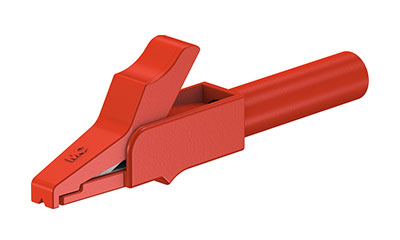

SAGK4-K
Small, slim, made of brass with all-round insulation. Toothed jaws for wide grip with surface for fine wire. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

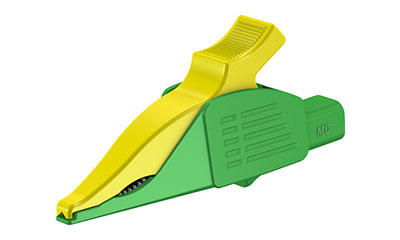

XDK-1033
Made of brass with all-round insulation. Toothed jaws for wide grip with surface for fine wire. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
