10226-52A2PL

Connector Accessories

代替品検索

類似スペック品検索

10226-52A2PL

Connector Accessories

製品概要

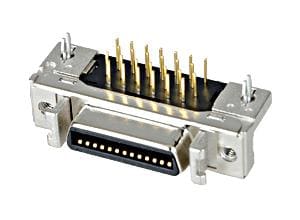

Conn Mini D Ribbon RCP 26 POS 2.54mm Solder RA Thru-Hole 26 Terminal 1 Port Tray

ライフサイクル : Active

ECCN : EAR99

HTSN : 8536694050

代替品検索

類似スペック品検索

製品概要

Conn Mini D Ribbon RCP 26 POS 2.54mm Solder RA Thru-Hole 26 Terminal 1 Port Tray

ライフサイクル : Active

ECCN : EAR99

HTSN : 8536694050

製品情報

データシート
3D CAD情報
- SamacSys
フットプリント/シンボル/3D CAD情報

データシート
データシート(English)	EN_3M_Datasheet_20141028160207184

製品仕様

メーカ名: 3M

製品名: 10226-52A2PL

製品分類: Connector Accessories

ライフサイクル: Active

RoHS: RoHS対応

Height: 9.4mm

Length: 37.2mm

Other names: 7000007541 | 54745225316 | 3937-10226-52A2PL | 04547452253166 | JE150316261

Width: 16.7mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 85°C

Minimum service temperature: -55°C

Number of arrays: 2

Number of poles: 26POS

Rated Voltage(DC): 200V

Rated current: 500mA

Shape/Type: リセプタクル(ライトアングル)

Wire connection method: Solder

メーカ梱包数量: 1
