10236-6202PL 3M Connector Accessories - 商品詳細情報

10236-6202PL

Connector Accessories

Search Alternative Products

Show Similar

10236-6202PL

Connector Accessories

Product Overview

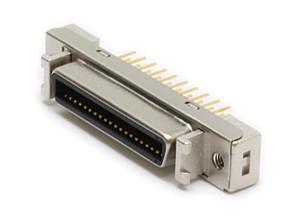

Conn Mini D Ribbon RCP 36 POS 2.54mm Solder ST Thru-Hole 36 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Search Alternative Products

Show Similar

Product Overview

Conn Mini D Ribbon RCP 36 POS 2.54mm Solder ST Thru-Hole 36 Terminal 1 Port

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694050

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_3M_Datasheet_20150128115522226
Datasheet	EN_3M_Datasheet_20180228110039614

Specifications

Manufacturer name: 3M

Product name: 10236-6202PL

Product classification: Connector Accessories

Lifecycle Status: Active

RoHS: RoHS

Height: 11mm

Length: 43.5mm

Other names: JE150317301 | 54745226150 | 7000007549 | 04547452261505

Width: 9.1mm

Contact point finish: Gold Over Nickel

Maximum service temperature: 85°C

Minimum service temperature: -20°C

Number of poles: 36

Rated current: 1A

Shape/Type: リセプタクル(ストレート)

Wire connection method: Solder

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
