3429-6002LCPL 3M PCB to cable connector - 商品詳細情報

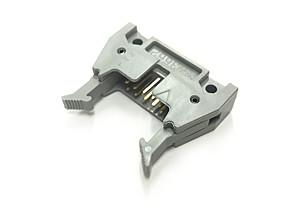

3429-6002LCPL

PCB to cable connector

Search Alternative Products

Show Similar

3429-6002LCPL

PCB to cable connector

Lifecycle Status : Obsolete

HTSN : 8538908080

Search Alternative Products

Show Similar

Lifecycle Status : Obsolete

HTSN : 8538908080

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: 3M

Product name: 3429-6002LCPL

Product classification: PCB to cable connector

Lifecycle Status: Obsolete

RoHS: RoHS

Maximum service temperature: ＋105

Minimum service temperature: -55

Number of poles: 26

Pitch: 2.54mm

Rated Voltage(DC): AC:250V MAX/DC:300V MAX

Rated current: １A MAX.

Shape/Type: ボックスヘッダー直線型

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
