TSC-55/RU  DMC  Display Evaluation Development Board Kit  -  商品詳細情報

TSC-55/RU DMC

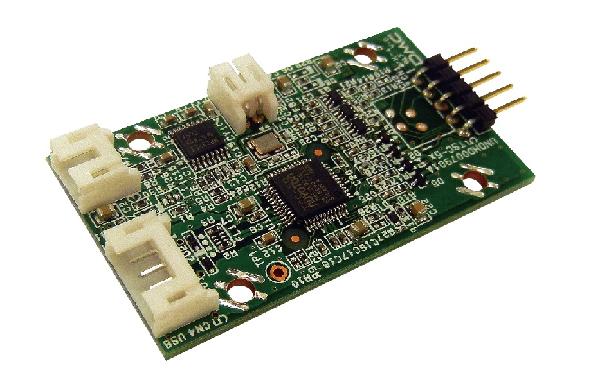

The images are for reference only. For the precise specifications, refer to the product specifications.

Added to bookmarks.
  • TSC-55/RU

    TSC-55/RU

    DMC

    Display Evaluation Development Board Kit

    DMC

    Display Evaluation Development Board Kit

    Added to bookmarks.
  • Product Overview

    5-Wire Resistive Touch Controller

    Lifecycle Status : Active
    Product Overview

    5-Wire Resistive Touch Controller

    Lifecycle Status : Active

    Product Information

    Related Videos
    Data sheet
    Design/Simulation Data
    Other Documents
    Data Sheet
    Datasheet EN_DMC_Datasheet_20240422104137522

    Specifications

    Manufacturer name
    DMC
    Product name
    TSC-55/RU
    Product classification
    Display Evaluation Development Board Kit
    Lifecycle Status
    Active
    RoHS
    RoHS
    Manufacturer Packaging
    Bulk
    Manufacturer packaging quantity
    1
    Related Products

    Click here for related products

    If you find an error in the product information, please let us know here.

    Details

      The dedicated touch controller board for the 5-wire resistive touch panel FST Series.

      It enables stable coordinate detection and has a proven track record in various applications, particularly industrial uses.

      Specification
      Supply Voltage:DC 3.0V ~ 5.5V
      Consumption Current :75mA (シリアルモード時、50pps、Vin=5.0V、at touch input)
      I/F Type:USB2.0 Full Speed/Asynchronous Serial
      Operating Temperature:-40 ~ 80℃(no condensation)
      Coordinate Resolution :10bit (1024 x1024)
      Coordinate Number to Output :1 point
      Outline:53x30mm
      Max height of components :4.8mm
      EEPROM:Built-in
      Interface:USB and RS-232C

      Compatible touch panel:FST Series
      Compatible Controller Cable:TSC-10/SC(USB), TSC-25/RS-SC1 (RS-232C)

      *This touch controller product can have various functions configured, such as position correction calibration, by installing the driver software "DMT-DD" from DMC. DMT-DD can be downloaded from DMC's website

      https://www.dush.co.jp/english/product/software/dmt-dd/
    Expected Shipping Date : Not Available
    • C1S Part Number

      :

      C1S207400002487

    Please submit a RFQ on delivery time, available QTY and price.
