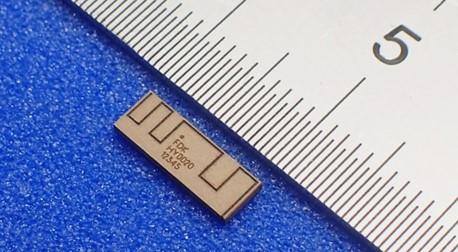

HY0020 FDK 802.15.1 Bluetooth Modules - 商品詳細情報

HY0020

FDK

802.15.1 Bluetooth Modules

加工依頼

点击这里查看类似商品

HY0020

FDK

802.15.1 Bluetooth Modules

FDK

802.15.1 Bluetooth Modules

产品概要

Bluetoothモジュール

生命周期状态 : 量产中

HTSN : 8517620090

加工依頼

点击这里查看类似商品

产品概要

Bluetoothモジュール

生命周期状态 : 量产中

HTSN : 8517620090

产品文档

数据表
3D CAD情報
- SamacSys
占用空间/符号/3D CAD信息

规格

制造商名称: FDK

制品名: HY0020

制品分类: 802.15.1 Bluetooth Modules

生命周期状态: 量产中

电源电压: 1.7 to 3.6 V

动作温度范围: -40 to +85℃

Bluetooth Version: ｖ5.4

ROM/RAM（字节）: 512KB Flash / 64KB RAM

チップ: Nordic nRF52832(Arm® Cortex®–M4 with FPU)

封装: 29-Pin LGA

尺寸: 3.5 x 10 x 1 mm

接口类型: NFC, SPI, I2C, I2S, UART, PDM, QDEC, ADC

原厂包装: Tape & Reel

制造商数量: 2000

相关商品

点击此处了解评估板

点击此处了解此产品的评估板

如果产品信息中有错误，请在此处指出。

产品文档

数据表
规格书(English)	EN_FDK_Datasheet_20240613145857941
技术文件
产品目录(English)	EN_FDK_Catalog_20240613150031520
