D02-22-26S-PKG100 Japan Aviation Electronics Industry Connector Contact - 商品詳細情報

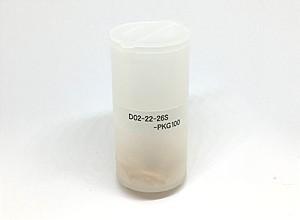

D02-22-26S-PKG100

Japan Aviation Electronics Industry

Connector Contact

Search Alternative Products

Show Similar

D02-22-26S-PKG100

Japan Aviation Electronics Industry

Connector Contact

Japan Aviation Electronics Industry

Connector Contact

Product Overview

Contact SKT Crimp ST Cable Mount Loose Piece

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536904000

Search Alternative Products

Show Similar

Product Overview

Contact SKT Crimp ST Cable Mount Loose Piece

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536904000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Japan Aviation Electronics Industry_Datasheet_20241122121028414

Specifications

Manufacturer name: Japan Aviation Electronics Industry

Product name: D02-22-26S-PKG100

Product classification: Connector Contact

Lifecycle Status: Active

RoHS: RoHS

Series name: JL05

Length: 11.65mm

Maximum operating temperature: 85C

Minimum operating temperature: -55C

Other names: -D02-22-26S-PKG100 | D022226SPKG100 | 670-2172 | D02-22-26S-0001

Contact resistance: 20mOhm

Operating temperature range: C

Product type: SKT

Shield: Signal

Type: Straight

Wire connection method: Crimp

If you find an error in the product information, please let us know here.
