YME MF 12A Knitter-Switch Key Switch - 商品詳細情報

YME MF 12A

Knitter-Switch

Key Switch

加工依頼

点击这里查看类似商品

YME MF 12A

产品概要

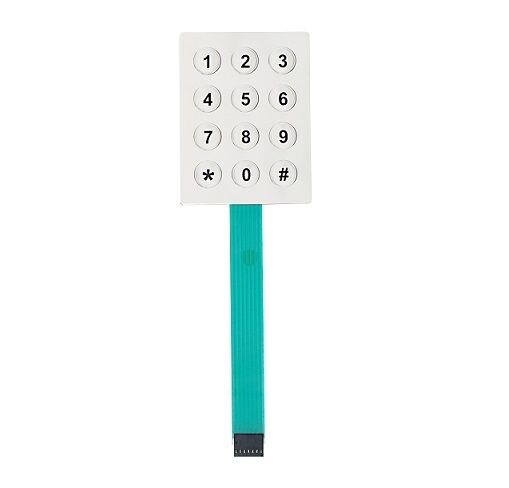

steel keypad

加工依頼

点击这里查看类似商品

产品概要

steel keypad

产品文档

3D CAD情報
- SamacSys
占用空间/符号/3D CAD信息

规格

制造商名称: Knitter-Switch

制品名: YME MF 12A

制品分类: Key Switch

RoHS: RoHS

Series name: YME

Rated current: 50mA

Rated Voltage(AC): 25VAC

Rated Voltage(DC): 25V

Feature: sheet type, low-cost

Size: 105X80mm

Length: 105mm

Maximum service temperature: ＋70℃

Minimum service temperature: －10℃

Operating life: 3.000,000

Width: 80mm

Color of operation button: silver (stainless steel)

Insulation resistance: 500kΩ

Number of circuits: 12

Operational function: mom-on

Purpose: Industrial

Specification 1: Stainless steel 12 key sheet type

Stroke: 0.5mm

Terminal shape: connector terminal

Waterproof property: IP67

荷重値: 6N

衝撃基準: IK10

原厂包装: Bulk

制造商数量: 10
