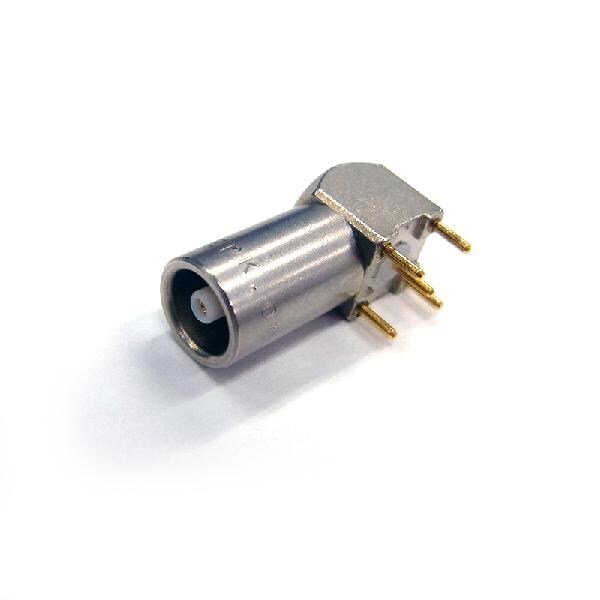

EPK.00.250.NTN Lemo Connector Circular - 商品詳細情報

EPK.00.250.NTN

Lemo

Connector Circular

Search Alternative Products

Show Similar

EPK.00.250.NTN

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694010

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694010

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Lemo

Product name: EPK.00.250.NTN

Product classification: Connector Circular

Lifecycle Status: Active

RoHS: RoHS

Contact point finish: Gold

Color: White

Rated current: 4A

Product type: 同軸 50Ω小型プリント基板用エルボソケット

Number of poles: 1

Weight: 4.17g

Manufacturer Packaging: Pack

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
