45F330E Ohmite Through Hole Resistor - 商品詳細情報

45F330E

Ohmite

Through Hole Resistor

Search Alternative Products

Show Similar

45F330E

Ohmite

Through Hole Resistor

Ohmite

Through Hole Resistor

Product Overview

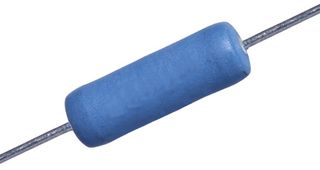

Res Wirewound 330 Ohm 1% 5W ±20ppm/C Conformal Silicone Ceramic AXL

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8533310000

Search Alternative Products

Show Similar

Product Overview

Res Wirewound 330 Ohm 1% 5W ±20ppm/C Conformal Silicone Ceramic AXL

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8533310000

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Ohmite

Product name: 45F330E

Product classification: Through Hole Resistor

Lifecycle Status: Active

RoHS: RoHS

Package: Lead/Axial

Resistance value: 330Ohm

Tolerance: 1%

Rated power: 5W

Materials: 巻線

Temperature coefficient: ±20ppm/°C

Diameter: 8.7mm

Length: 23.8mm

Size: 8.70X23.80mm

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Ohmite_Datasheet_20150211034817329
Datasheet	EN_Ohmite_Datasheet_20180221200623229
