CMI-9705-0380-SMT-TR Same Sky (formerly CUI Devices) Buzzer - 商品詳細情報

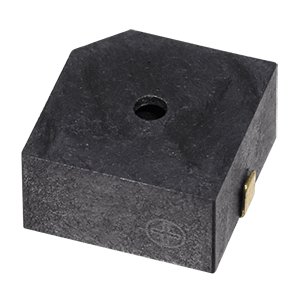

CMI-9705-0380-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Search Alternative Products

Show Similar

CMI-9705-0380-SMT-TR

Same Sky (formerly CUI Devices)

Buzzer

Same Sky (formerly CUI Devices)

Buzzer

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8531809041

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: CMI-9705-0380-SMT-TR

Product classification: Buzzer

Lifecycle Status: Active

RoHS: RoHS

Sound pressure level: 80dB

Frequency: 2700Hz

Mounting Type: Surface Mount

Length: 9.7mm

Width: 9.7mm

Height: 5mm

Other names: 102-CMI-9705-0380-SMT-TR | 102-CMI-9705-0380-SMT-DKR | 102-CMI-9705-0380-SMT-CT

Consumption current: 30mA

Dimension: 0.38, 0.38, 0.2in

Illumination: No

Input type: Vdc

Maximum operating temperature: 85°C

Minimum operating temperature: -40°C

Rated Voltage: 3

Shape: Square

Technology: Magnetic

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 750

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20240419182640056
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204526695
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204182746305
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185705997
