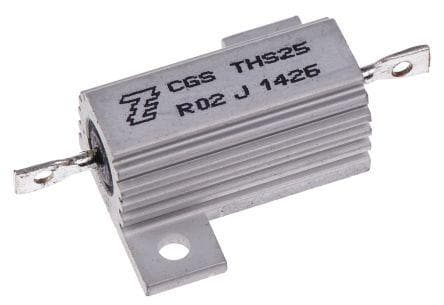

THS25R02J TE Connectivity Connector Power - 商品詳細情報
加工依頼
规格
- 制造商名称
- TE Connectivity
- 制品名
- THS25R02J
- 制品分类
- Connector Power
- 生命周期状态
- Active
- Series name
- THS|CGS
- Length
- 51.8mm
- Width
- 28mm
- Height
- 15mm
- Type
- Wirewound
- Package
- Lead/Axial|Box
- Resistance value
- 20mOhms
- Size
- 29.00x28.00mm
- Tolerance
- 5%
- Rated power
- 25W
- Temperature coefficient
- 50ppm/C
- Operating temperature range
- -55 to 200C
- Materials
- Wirewound
- Feature
- -
- Allowable Error
- 5%
- Electric power
- 25W
- Lead shape
- Solder Lug
- Mounting Feature
- Flange
- Composition
- Wirewound
- Coating, Housing Type
- Aluminum
- Failure Rate
- -
- Other names
- 1879075-2
- 原厂包装
- Box
- 制造商数量
- 100
