7640-6002 BL 3M Connector Rectangular - 商品詳細情報

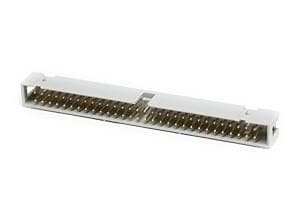

7640-6002 BL

Connector Rectangular

Search Alternative Products

Show Similar

7640-6002 BL

Connector Rectangular

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

ECCN : EAR99

HTSN : 8536694040

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: 3M

Product name: 7640-6002 BL

Product classification: Connector Rectangular

Pitch: 2.54mm

Product type: ヘッダー

Shape/Type: Vロープロヘッダー直線型

Rated current: 1A MAX

Contact point finish: 接触部金めっき厚0.2μｍ以上(はんだ付け部金フラッシュめっき他ニッケルめっき）

Maximum service temperature: 105

Minimum service temperature: -55

Rated Voltage(DC): AC:250V MAX/DC:300V MAX

Wire connection method: はんだ付け

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
