制造商名称

Fuji Electric

制品名

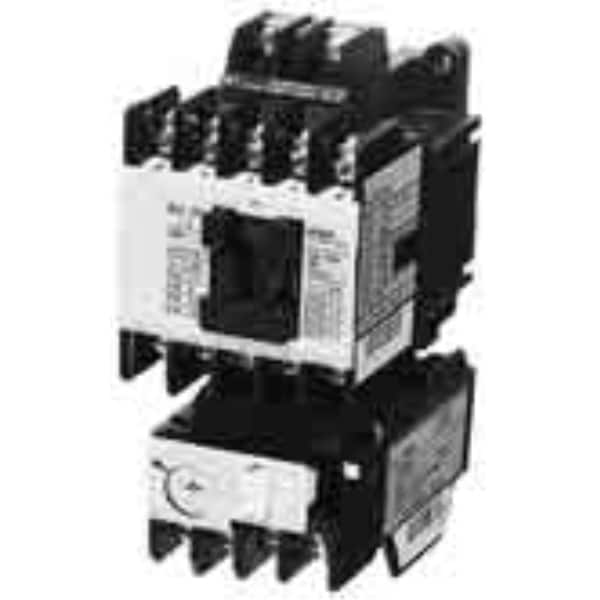

SW-03 Main circuit AC200V 1.5KW Coil AC100V 1a

制品分类

电磁开闭器

额定容量

200 to 240VAC / 2.2kW、380 to 440VAC / 2.7kW

额定使用电流

200VAC to 240VAC / 11A,380VAC to 440VAC / 7A

额定电压(AC)

100VAC

补助接点

1a

特长

High life type (SC)

线圈额定电压

100V

规格1

Operating coil specification: AC operation (or AC/DC common use)

规格2

Motor capacity Main circuit200 to 220VAC:1.5kW

规格3

Thermal relay specifications: 2 elements

频率

Operating coil frequency: 50|60Hz

额定电流

Electromagnetic contactor fixing current:11A
