ABW111B IDEC Other Switch - 商品詳細情報

ABW111B

IDEC

Other Switch

Search Alternative Products

Show Similar

ABW111B

Product Overview

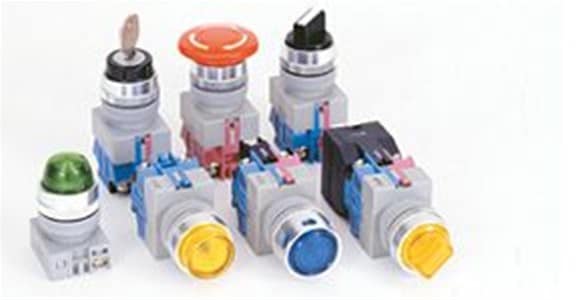

Push Button Switch

ECCN : EAR99

HTSN : 8536509055

Search Alternative Products

Show Similar

Product Overview

Push Button Switch

ECCN : EAR99

HTSN : 8536509055

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_IDEC_Datasheet_20241217181058260

Specifications

Manufacturer name: IDEC

Product name: ABW111B

Product classification: Other Switch

Rated current: 10A

Rated Voltage(DC): 600V

Color: Black

Contact arrangement: 1a1b

Contact point type: Silver contact

Mounting hole diameter: φ22

Operation type: Momentary

Shape: Circular (flat type)

Structure: Terminal cover integrated type/Protection structure:IP65

Terminal shape: M3.5 Screw terminal

Type: Push Button switch

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
