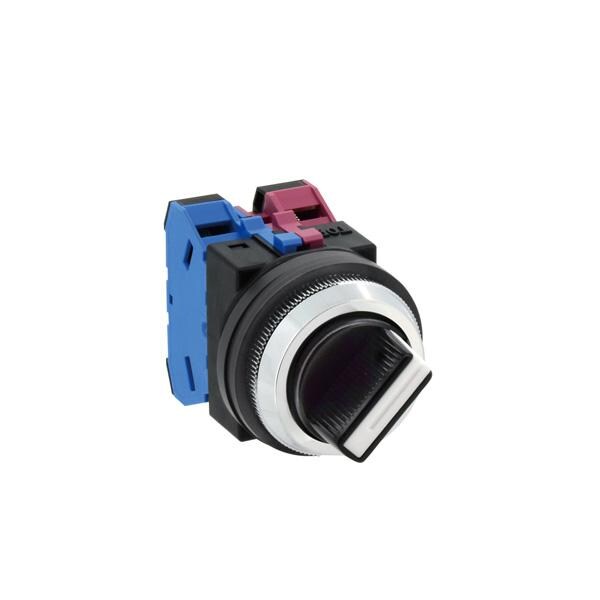

ASN340N IDEC Selector Switch - 商品詳細情報

ASN340N

IDEC

Selector Switch

Search Alternative Products

Show Similar

ASN340N

Product Overview

selector switch

Search Alternative Products

Show Similar

Product Overview

selector switch

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Specifications

Manufacturer name: IDEC

Product name: ASN340N

Product classification: Selector Switch

Contact arrangement: 4a

Mounting hole diameter: φ30

Operation type: Selector Switch

Shape: Arrow-shaped handle

Specification 1: Notch angle:45°

Specification 2: Number of Notch:3

Specification 3: Notch specification:Stop at each position

Structure: Protective structure:IP65

Terminal shape: M3.5 Screw terminal

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.

Details

Highly reliable and available in a wide range of variations, heavy rotation type switches with outstanding environmental resistance
