BD7692FJ-E2 Rohm PFC (Power Factor Correction) - 商品詳細情報

BD7692FJ-E2

Rohm

PFC (Power Factor Correction)

Search Alternative Products

Show Similar

BD7692FJ-E2

Rohm

PFC (Power Factor Correction)

Rohm

PFC (Power Factor Correction)

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390060

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8542390060

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Rohm_Datasheet_20210617200017471

Specifications

Manufacturer name: Rohm

Product name: BD7692FJ-E2

Product classification: PFC (Power Factor Correction)

Lifecycle Status: Active

RoHS: RoHS

Other names: 846-BD7692FJ-E2TR 846-BD7692FJ-E2CT 846-BD7692FJ-E2DKR

Constitution: Standard

Frequency (switching): 450kHz

Maximum input voltage: 26V

Operating temperature range: -40 to 105C

Output Power: 10V

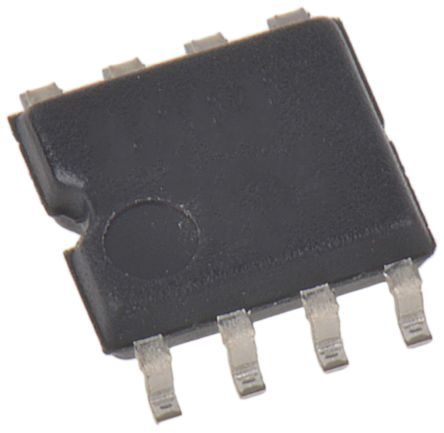

Package: SOP-J8

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 2500
