Product Overview

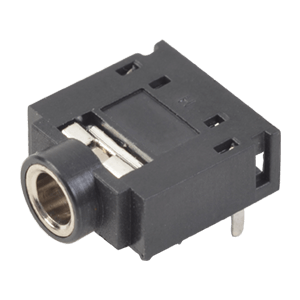

3.5 mm, Stereo, Right Angle, Through Hole, Isolated Ground, 3 Conductors, 2 Internal Switches, Audio Jack Connector

Lifecycle Status : 量产中

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

3.5 mm, Stereo, Right Angle, Through Hole, Isolated Ground, 3 Conductors, 2 Internal Switches, Audio Jack Connector

Lifecycle Status : 量产中

ECCN : EAR99

HTSN : 8536694040

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: SJ1-3525NG

Product classification: 音频/录像连接器

Lifecycle Status: 量产中

RoHS: 符合RoHS标准

系列名: SJ1-352XNG

Connector Type: Jack

额定电压(DC): 12V

Mounting Type: Through Hole

安装方向: Horizontal

防护屏: No

端口数: 1

长度: 14.3mm

宽度: 12mm

高度: 5mm

尺寸: 14X12X6mm

特长: Through Hole

其它名称: CP1-3525NG | SJ13525NG | 045-0976R

导体数: 3

彩色: Black

规定电流: 1A

说明: audio jack, 3.5 mm, rt, stereo, through hole, 2 switches, isolated ground

输入电压: 4.5 to 5.5V

If you find an error in the product information, please let us know here.

Documents

数据表
规格书(English)	EN_Same Sky (formerly CUI Devices)_Datasheet_20210204150456687
证明书
RoHS证书(English)	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204123100
设计和仿真数据
符号/足迹/ 3D模型(UltraLibrarian)(English)	Download from Ultra Librarian
符号/足迹/ 3D模型(English)	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181551993
足迹(English)	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185437789
