LYL29K-H1K2-26 ams OSRAM LEDs - 商品詳細情報

LYL29K-H1K2-26

ams OSRAM

LEDs

Search Alternative Products

Show Similar

LYL29K-H1K2-26

Product Overview

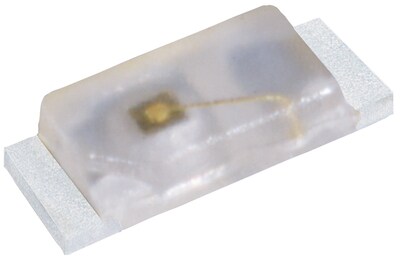

LED Uni-Color Yellow 591nm Automotive 2-Pin Chip 0603(1608Metric) T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541402000

Search Alternative Products

Show Similar

Product Overview

LED Uni-Color Yellow 591nm Automotive 2-Pin Chip 0603(1608Metric) T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541402000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Osram Opto semiconductors_Datasheet_20141029221429503
Datasheet	EN_Osram Opto semiconductors_Datasheet_20180202044509462

Specifications

Manufacturer name: ams OSRAM

Product name: LYL29K-H1K2-26

Product classification: LEDs

Lifecycle Status: Active

RoHS: RoHS

Color: Yellow

Luminescent color: Yellow

luminous intensity: No

Luminescence wavelength/Chromaticity coordinate: 587nm

Rated power: 3.6mW

Package: 1.6 x 0.8 mm

Shape: Surface Mount

Purpose: Industrial / Consumer

Type: Uni-Color

Peak wavelength: 591nm

Series name: SMARTLED 0603

If you find an error in the product information, please let us know here.
