XN4E-LL413Q4MR IDEC Emergency Stop Switch - 商品詳細情報

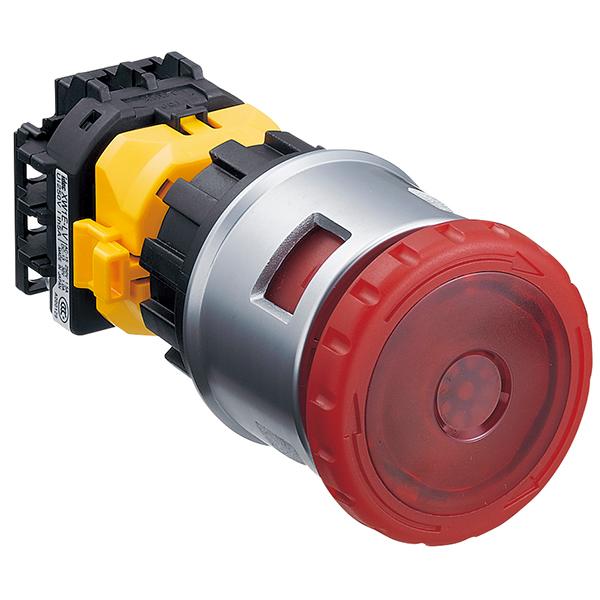

XN4E-LL413Q4MR

IDEC

Emergency Stop Switch

Search Alternative Products

Show Similar

XN4E-LL413Q4MR

IDEC

Emergency Stop Switch

IDEC

Emergency Stop Switch

Product Overview

Switch Emergency Stop N.O./N.C. SPST/3PST Mushroom Button 5A 250VAC 250VDC 32N Screw Panel Mount

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509033

Search Alternative Products

Show Similar

Product Overview

Switch Emergency Stop N.O./N.C. SPST/3PST Mushroom Button 5A 250VAC 250VDC 32N Screw Panel Mount

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509033

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: IDEC

Product name: XN4E-LL413Q4MR

Product classification: Emergency Stop Switch

Lifecycle Status: Active

RoHS: RoHS

Type: Emergency Stop/Illuminated

Rated current: 5|2A

Series name: XN

Circuit: 4PST-3NC/1NO

Other names: 1885-1157

Color of operation button: Red

Feature: 南京錠スタイル

Mounting Type: Front panel mount

Operating temperature range: -25 to 55C

Panel Cutout Dimensions: Circular/30.50mm

Rated Voltage(AC): 125VAC

Rated Voltage(DC): 30V

Shape of the operation part: Round/Button/Mushroom

Terminal shape: Screw

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1
