XW1E-BV402MFR IDEC Push Button Switch - 商品詳細情報

XW1E-BV402MFR

IDEC

Push Button Switch

Search Alternative Products

Show Similar

XW1E-BV402MFR

Product Overview

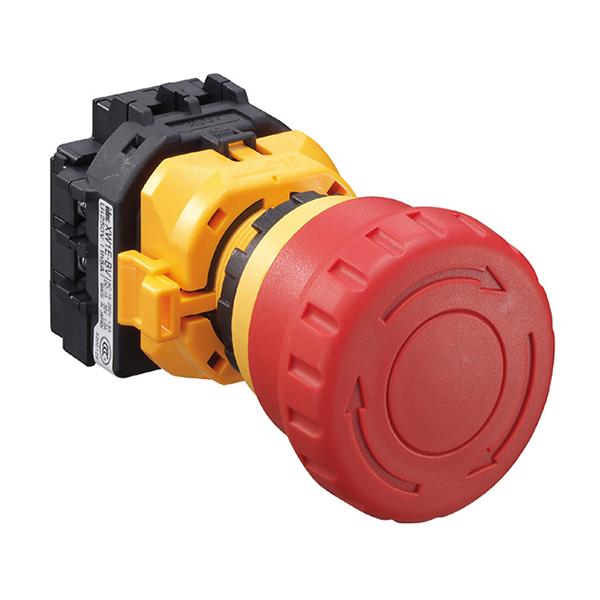

Emergency Stop Push Button switch

ECCN : EAR99

HTSN : 8536509065

Search Alternative Products

Show Similar

Product Overview

Emergency Stop Push Button switch

ECCN : EAR99

HTSN : 8536509065

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: IDEC

Product name: XW1E-BV402MFR

Product classification: Push Button Switch

RoHS: RoHS

Shape: Large type (ø40) button

Color of operation button: Red

Specification 1: Main contact(b-contact):2b

Operation type: Push-lock pull or turn reset

Specification 2: Monitor contact (a-contact):No

Terminal shape: M3 screw terminal

Type: IP20

Manufacturer Packaging: Bulk

Manufacturer packaging quantity: 1

If you find an error in the product information, please let us know here.
