制造商名称

Renesas Electronics

制品名

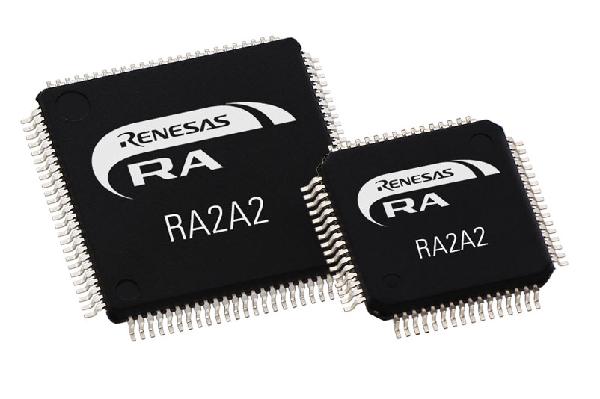

R7FA2A2BD3CFM#BA1

制品分类

特殊微控制器

生命周期状态

量产中

RoHS

符合RoHS标准

10-Bit A/D Converter (ch)

0ch

10-Bit D/A Converter (ch)

0ch

12-Bit A/D Converter (ch)

2ch

12-Bit D/A Converter (ch)

0ch

14-Bit A/D Converter (ch)

0ch

16-Bit A/D Converter (ch)

0ch

16-Bit D/A Converter (ch)

0ch

16-Bit Timer (ch)

5ch

16-bit Enhanced Timer (ch)

0ch

16-bit High Res Timer (ch)

0ch

24-Bit Sigma-Delta A/D Converter (ch)

4ch

2D Drawing Engine

No

32-Bit High Res Timer (ch)

0ch

32-Bit Timer (ch)

0ch

32-Bit ULPT (ch)

0ch

8-Bit D/A Converter (ch)

0ch

8-Bit Timer (ch)

0ch

Accelerator

No

Analog Comparator (ch)

0ch

Asynchronous General Purpose Timer

8ch

Asynchronous General Purpose Timer / Interval Timer (ch)

10ch

Bit Length

32

CAN

0ch

CAN-FD (ch)

0ch

CPU

Arm Cortex-M23

CPU Architecture

Arm

Camera I/F (Parallel)

No

Capacitive Touch Sensing Unit (ch)

0ch

DMA (ch)

0ch

DMAC or DTC

DTC

DRAM I/F

No

DTC (ch)

1ch

Data Flash

8KB

Debug Interface

SWD

ECC SRAM

Yes

EPC

PLQP0064KB

EtherCat (ch)

0ch

Ethernet

No

Ethernet ch

0ch

Ethernet speed

No

External Interrupt Pins

12

External Memory Bus (bit)

No

Family Name

RA

Floating Point Unit

No

GPU

No

Graphics LCD Controller

No

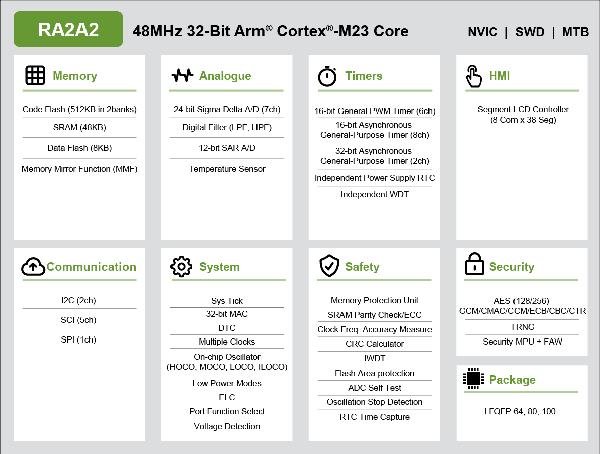

Group Name

RA2A2

High Resolution Output Timer

No

High-Speed Analog Comparator (ch)

0ch

I/O端口

43

I2C

1

I3C (ch)

0ch

Image Codec

No

IrDA(yes/no)

No

LIN

0

LVD or PVD

Yes

Low-Power Analog Comparator (ch)

0ch

MIPI Interfaces (CSI) (ch)

0ch

MIPI Interfaces (DSI/CSI)

0

Main CPU

Arm Cortex-M23

Number of Supply Voltage(s)

1

OPAMP (ch)

0ch

OSPI (ch)

0ch

On-chip Oscillator

Yes

Operating Freq of Sub CPU (Max)

0

Operating Freq(Max)

48MHz

PCI Express (generation and ch)

No

PGA (ch)

4ch

PLP

2037-12-01

PWM Output (pin#)

9ch

Power-On Reset

Yes

Program Memory

512KB

QSPI (ch)

0ch

QSPI Interface

0

RAM

48KB

RTC

Yes

SCI or UART (ch)

4ch

SDHI (ch)

0ch

SPI

1

SPI (ch)

1ch

SSI

0ch

Security & Encryption

128-bit Unique ID,TRNG,AES(128/256)

Segment LCD Controller

Yes

Standby operable timer

Yes

Sub CPU

No

Sub-clock (32.768 kHz)

Yes

Supply voltage

1.6 to 5.5V

Temperature Sensor (ch)

1ch

USB FS (host ch/device ch)

(0/0)

USB HS (host ch/device ch)

(0/0)

USB Ports

0

USB SS (host ch/device ch)

(0/0)

Watchdog Timer (ch)

2

Wireless

No

动作温度范围

Ta=-40 to 105C

厚度

1.7mm

原供应商名称/品牌名称　

renesas

封装

pkg_11658

尺寸

10X10X1.7mm

比特数

32

类型

LFQFP

系列名

RA2

长度

10mm

间距

0.5mm

原厂包装

Tray

制造商数量

1280
