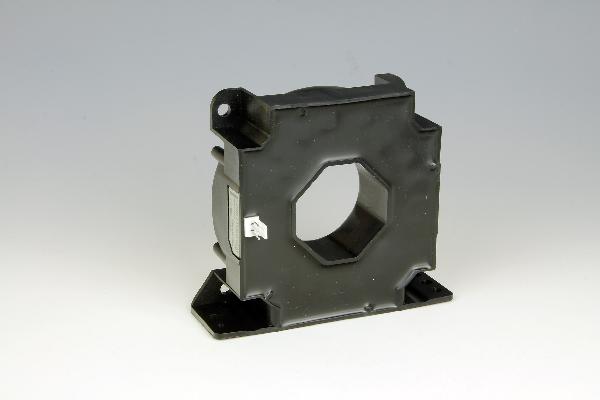

S29S1T0D24ZM Tamura 電流センサ - 商品詳細情報

S29S1T0D24ZM

Tamura

電流センサ

Search Alternative Products

Show Similar

S29S1T0D24ZM

Product Overview

1000A(飽和2100A）まで対応した高精度電流センサ

Lifecycle Status : 量産中

ECCN : EAR99

HTSN : 8504312000

Search Alternative Products

Show Similar

Product Overview

1000A(飽和2100A）まで対応した高精度電流センサ

Lifecycle Status : 量産中

ECCN : EAR99

HTSN : 8504312000

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

データシート
データシート	JA_Tamura_データシート_20170207163641870

Specifications

Manufacturer name: Tamura

Product name: S29S1T0D24ZM

Product classification: 電流センサ

Lifecycle Status: 量産中

RoHS: RoHS対応

タイプ: Current Sensor

定格電流: 1kA

動作原理: クローズドループ

一次導体: 貫通型

シリーズ名: S29

電源電圧: ±15V ~ 24V

出力電圧: 0.2A

安全規格: UL508

長さ: 110mm

幅: 34mm

高さ: 95mm

動作温度範囲: -40 to 85C

Manufacturer Packaging: Tray

Manufacturer packaging quantity: 12
